Diavolo

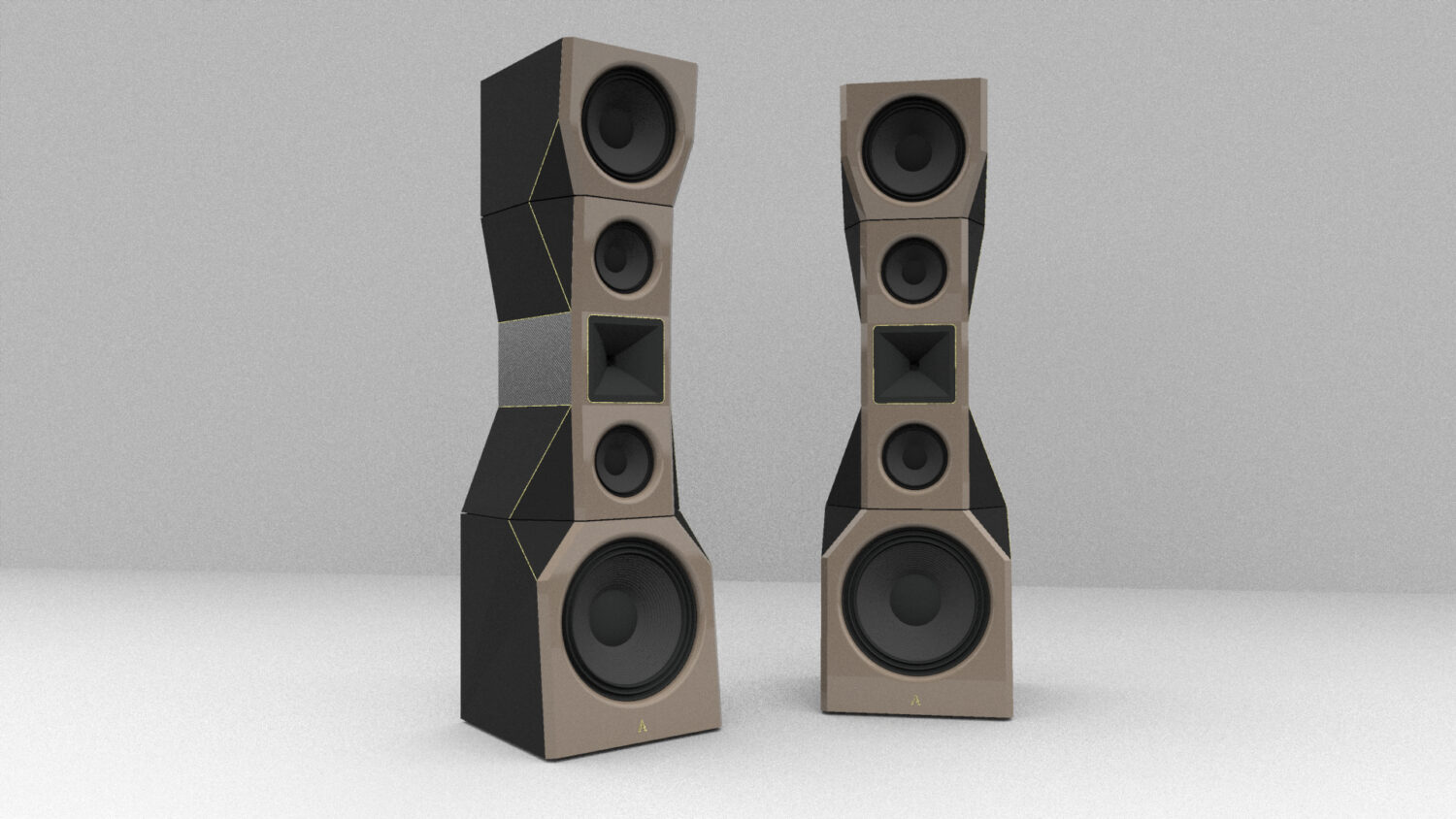

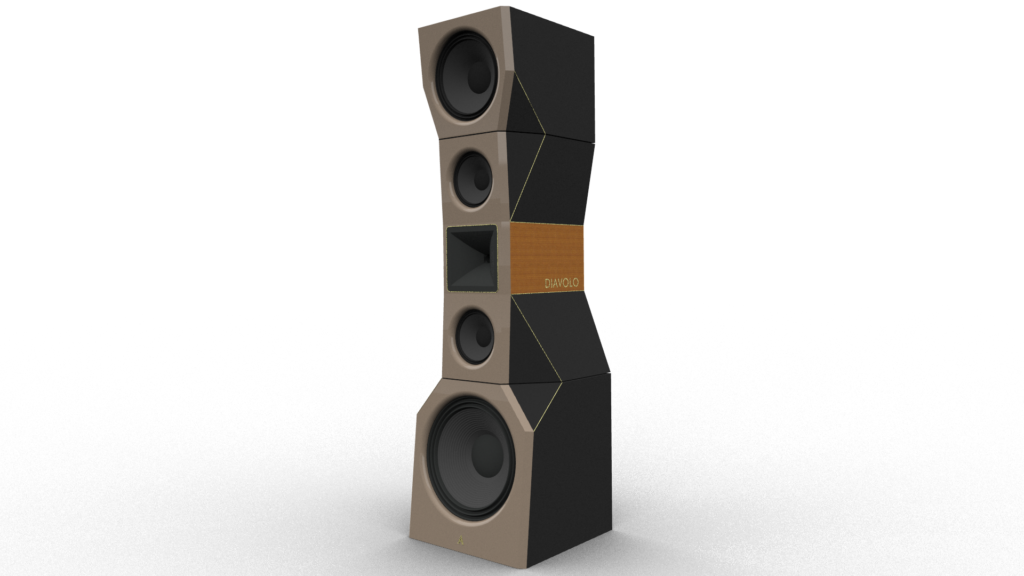

3-element modular 4-way semi-active loudspeakers. The built-in DSP enables digital correction of low and low-mid frequencies, which allows the elimination of standing waves in the room.

Crossover points: 2000 Hz, 280 Hz, 80 Hz.

Midrange-tweeter section in symmetrical arrangement, passive.
Rated power:
700 W
Sensitivity 97 dB
Frequency response 80 Hz – 22000 Hz

Air-core coils, copper and aluminum capacitors and custom graphite-in-oil resistors are used in passive crossovers of these modules. High frequency transducer is a compression driver with a 3-inch titanium diaphragm in all-metal aluminum horn.

The midrange is reproduced by two 10-inch speakers with impregnated paper diaphragms, working in closed cabinets.

Lower midrange / upper bass band is reproduced by 15-inch (99 dB sensitivity) speaker with impregnated paper diaphragm, also working in a closed cabinet. It’s powered by a built-in DSP-equipped power amplifier.
Frequency response:
80 – 280 Hz Sensitivity
99 dB Subbass band is reproduced by dedicated 21-inch (95 dB sensitivity) transducer with impregnated paper diaphragm, working in a closed cabinet, as the rest of transducers. It’s powered by a built-in DSP-equipped power amplifier.

Frequency response: 22 – 80 Hz Sensitivity: 99 dB

Construction and finish:
Cabinets made of 30mm plywood, with an internal truss for stiffening
the structure and eliminating vibrations. Beautiful, rich in detail finish, champagne gold inserts and “facets, cristal cuts” that bring the construction closer to jewelry and processing of precious stones. That makes this loudspeakers exclusive and unique.
